Data transformation

This topic is covered on Jan 16. If you want to download a full .qmd instead of copying codes from the website, you can use data_transformation_exercise.qmd.

This exercise examines how income inequality has changed over time in the U.S. We will measure inequality by the 10th, 50th, and 90th percentiles of wage and salary income from 1962 to 2022.1 The goal is to produce a graph like this one.

Prepare your R environment

In RStudio, create a Quarto document. Save it in your working directory. Run the following code to load two packages we will use. If you do not have these packages, first run install.packages("tidyverse") and install.packages("haven") to install the packages.

library(tidyverse)
library(haven)

Data access

This exercise uses data from the Current Population Survey, provided via IPUMS. We have two versions of the data:

  • simulated data made available to you via the course website
  • actual data, for which you will register with the data provider

In lecture, we will use simulated data. In discussion, your TA will walk through the process to access the actual data. You will ultimately need to access the actual data for future assignments in this class.

Accessing simulated data

The simulated data are designed to have the same statistical properties as the actual data. To access the simulated data, copy the following line of code into your R script and run it. This line loads the data and stores it in an object called cps_data.

cps_data <- read_dta("https://soc114.github.io/data/simulated_cps_data.dta")

Accessing actual data

Accessing the actual data is important for future assignments. You may also use these data in your project. Here are instructions to access the data:

  1. Register for an account at cps.ipums.org
  2. Log in
  3. Click “Get Data”
  4. Add the following variables to your cart: incwage, educ, wkswork2, age, asecwt
  5. Add the 1962–2023 ASEC samples to your cart. Exclude the basic monthly samples
  6. Create a data extract
    • Select cases to only download people ages 30–45
    • Choose to download in Stata (.dta) format
  7. Submit your extract and download the data!

Store your data in a working directory: a folder on your computer that will hold the data for this exercise. Load the data using the read_dta function in the haven package.

cps_data <- read_dta("your_downloaded_file_name.dta")
Tip
  • Change the file name to the name of the file you downloaded
  • If R says the file does not exist in your current working directory, you may need to set your working directory by clicking Session -> Set Working Directory -> To Source File Location on a Mac or Tools -> Change Working Directory on Windows.

Explore the data

Type cps_data in the console. Some columns such as educ have a numeric code and a label. The code is how IPUMS has stored the data. The label is what the code means. You can always find more documentation explaining the labels on the IPUMS-CPS website.

filter() to cases of interest

In this step, you will use filter() to convert your cps_data object to a new object called filtered.

The filter() function keeps only rows in our dataset that correspond to those we want to study. The examples on the documentation page are especially helpful. The R4DS section is also helpful.

Here are two ways to use filter() to restrict to people working 50+ weeks per year. One way is to call the filter() function and hand it two arguments

  • .data = cps_data is the dataset
  • year == 1962 is a logical condition coded TRUE for observations in 1962
filter(.data = cps_data, year == 1962)

The result of this call is a tibble with only the observations from 1962. Another way to do the same operation is with the pipe operator |>

cps_data |>
  filter(year == 1962)

This approach begins with the data set cps_data. The pipe operator |> hands this data set on as the first argument to the filter() function in the next line. As before, the second argument is the logical condition year == 1962.

The piping approach is often preferable because it reads like a sentence: begin with data, then filter to cases with a given condition. The pipe is also useful

The pipe operator |> takes what is on the first line and hands it on as the first argument to the function in the next line. This reads in a sentence: begin with the cps_data tibble and then filter() to cases with year == 1962. The pipe can also string together many operations, with comments allowed between them:

cps_data |>
  # Restrict to 1962
  filter(year == 1962) |>
  # Restrict to ages 40-44
  filter(age >= 40 & age <= 44)

Your turn. Begin with the cps_data dataset. Filter to

  • people working 50+ weeks per year (check documentation for wkswork2)
  • valid report of incwage greater than 0 and less than 99999998
Show the code answer
filtered <- cps_data |>
  # Subset to cases working full year
  filter(wkswork2 == 6) |>
  # Subset to cases with valid income
  filter(incwage > 0 & incwage < 99999998)
Note

Filtering can be a dangerous business! For example, above we dropped people with missing values of income. But what if the lowest-income people refuse to answer the income question? We often have no choice but to filter to those with valid responses, but you should always read the documentation to be sure you understand who you are dropping and why.

group_by() and summarize() for subpopulation summaries

In this step, you will use group_by() and summarize() to convert your mutated object to a new object called summarized.

Each row in our dataset is a person. We want a dataset where each row is a year. To get there, we will group our data by year and then summarize each group by a set of summary statistics.

Introducing summarize() with the sample mean

To see how summarize() works, let’s first summarize the sample mean income within each year. The input has one row per person. The result has one row per group. For each year, it records the sample mean income.

filtered |>
  group_by(year) |>
  summarize(mean_income = mean(incwage))
# A tibble: 62 × 2
    year mean_income
   <dbl>       <dbl>
 1  1962       6383.
 2  1963       5831.
 3  1964       6688.
 4  1965       6066.
 5  1966       6438.
 6  1967       6745.
 7  1968       7244.
 8  1969       8465.
 9  1970       9198.
10  1971       8490.
# ℹ 52 more rows

Using summarize() with weighted quantiles

Instead of the mean, we plan to use three other summary statistics: the 10th, 50th, and 90th percentiles of income. We also want to incorporate the sampling weights provided with the Current Population Survey, in order to summarize the population instead of the sample.

We will use the wtd.quantile function to create weighted quantiles. This function is available in the Hmisc package. If you don’t have that package, install it with install.packages("Hmisc"). Using the Hmisc package is tricky, because it has some functions with the same name as functions that we use in the tidyverse. Instead of loading the whole package, we will only load the functions we are using at the time we use them. Whenever we want to calculate a weighted quantile, we will call it with the code packagename::functionname() which in this case is Hmisc::wtd.quantile().

The wtd.quantile function will take three arguments:

  • x is the variable to be summarized
  • weights is the variable containing sampling weights
  • probs is the probability cutoffs for the quantiles. For the 10th, 50th, and 90th percentiles we want 0.1, 0.5, and 0.9.

The code below produces weighted quantile summaries.

summarized <- filtered |>
  group_by(year) |>
  summarize(
    p10 = Hmisc::wtd.quantile(x = incwage, weights = asecwt, probs = 0.1),
    p50 = Hmisc::wtd.quantile(x = incwage, weights = asecwt, probs = 0.5),
    p90 = Hmisc::wtd.quantile(x = incwage, weights = asecwt, probs = 0.9),
    .groups = "drop"
  )

pivot_longer() to reshape data

In this step, you will use pivot_longer() to convert your summarized object to a new object called pivoted. We first explain why, then explain the task.

We ultimately want to make a ggplot() where income values are placed on the y-axis. We want to plot the 10th, 50th, and 90th percentiles along this axis, distinguished by color. We need them all in one colun! But currently, they are in three columns.

Here is the task. How our data look:

# A tibble: 62 × 4
   year   p10   p50    p90
  <dbl> <dbl> <dbl>  <dbl>
1  1962 1826. 4460. 11733.
2  1963 1770. 4484. 11934.
# ℹ 60 more rows

Here we want our data to look:

# A tibble: 186 × 3
   year quantity income
  <dbl> <chr>     <dbl>
1  1962 p10       1826.
2  1962 p50       4460.
3  1962 p90      11733.
4  1963 p10       1770.
5  1963 p50       4484.
6  1963 p90      11934.
# ℹ 180 more rows

This way, we can use year for the x-axis, quantity for color, and value for the y-axis.

Use pivot_longer() to change the first data frame to the second.

  • Use the cols argument to tell it which columns will disappear
  • Use the names_to argument to tell R that the names of those variables will be moved to a column called quantity
  • Use the values_to argument to tell R that the values of those variables will be moved to a column called income

If you get stuck, see how we did it at the end of this page.

Show the code answer
pivoted <- summarized %>%
  pivot_longer(
    cols = c("p10","p50","p90"),
    names_to = "quantity",
    values_to = "income"
  )

left_join() an inflation adjustment

In this step, you will use left_join() to merge in an inflation adjustment

A dollar in 1962 bought a lot more than a dollar in 2022. We will adjust for inflation using the Consumer Price Index, which tracks the cost of a standard basket of market goods. We already took this index to create a file inflation.csv,

inflation <- read_csv("https://soc114.github.io/data/inflation.csv")
# A tibble: 62 × 2
   year inflation_factor
  <dbl>            <dbl>
1  1962            10.1
2  1963             9.95
3  1964             9.82
# ℹ 59 more rows

The inflation_factor tells us that $1 in 1962 could buy about as much as $10.10 in 2023. To take a 1962 income and report it in 2023 dollars, we should multiple it by 10.1. We need to join our data

# A tibble: 186 × 3
   year quantity income
  <dbl> <chr>     <dbl>
1  1962 p10       1826.
2  1962 p50       4460.
3  1962 p90      11733.
# ℹ 183 more rows

together with inflation.csv by the linking variable year. Use left_join() to merge inflation_factor onto the dataset pivoted. Below is a hypothetical example for the structure.

# Hypothetical example
joined <- data_A |>
  left_join(
    data_B,
    by = join_by(key_variable_in_A_and_B)
  )
Show the code answer
joined <- pivoted |>
  left_join(
    inflation,
    by = join_by(year)
  )

mutate() to adjust for inflation

In this step, you will use mutate() to multiple income by the inflation_factor

The mutate() function modifies columns. It can overwrite existing columns or create new columns at the right of the data set. The new variable is some transformation of the old variables.

# Hypothetical example
old_data |>
  mutate(new_variable = old_variable_1 + old_variable_2)

Use mutate() to modify income so that it takes the values income * inflation_factor.

Show the code answer
mutated <- joined |>
  mutate(income = income * inflation_factor)

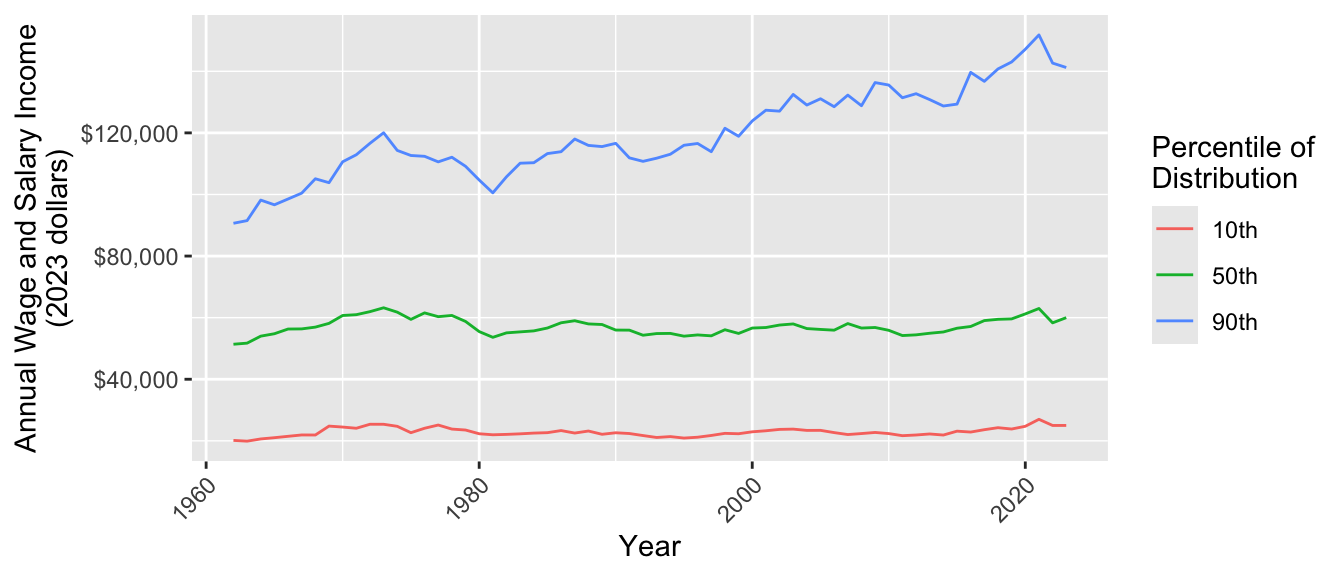

ggplot() to visualize

Now make a ggplot() where

  • year is on the x-axis
  • income is on the y-axis
  • quantity is denoted by color

Discuss. What do you see in this plot?

All together

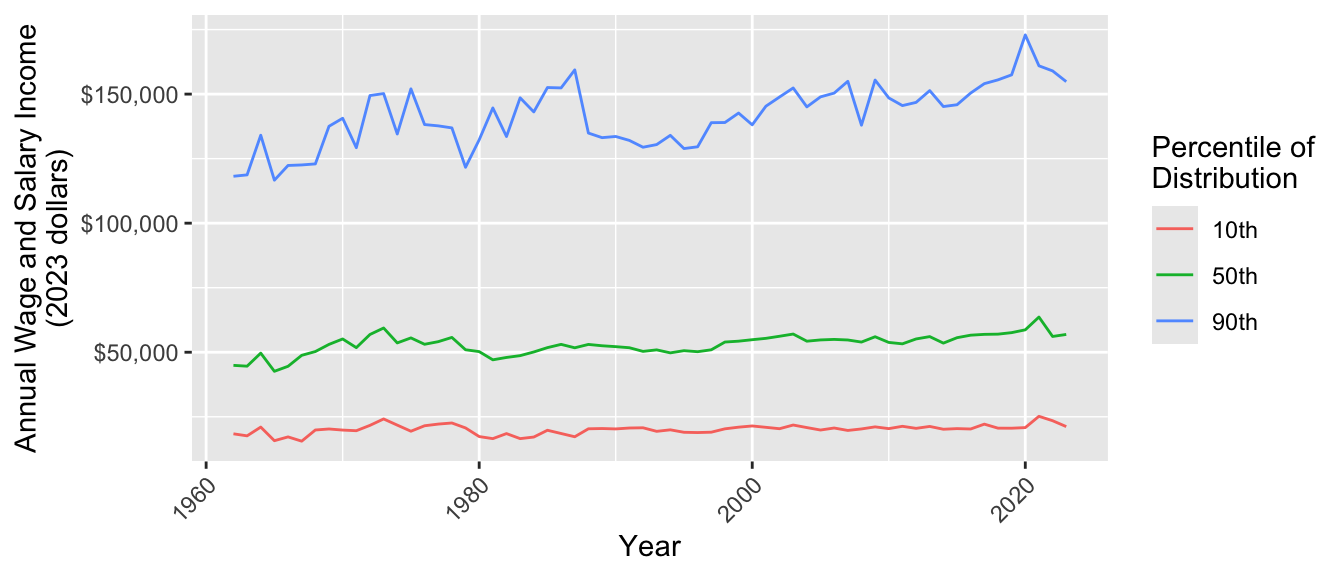

Putting it all together, we have a pipeline that goes from data to the plot.

cps_data |>
  # Subset to cases working full year
  filter(wkswork2 == 6) |>
  # Subset to cases with valid income
  filter(incwage > 0 & incwage < 99999998) |>
  # Produce summaries
  group_by(year) |>
  summarize(
    p10 = Hmisc::wtd.quantile(x = incwage, weights = asecwt, probs = 0.1),
    p50 = Hmisc::wtd.quantile(x = incwage, weights = asecwt, probs = 0.5),
    p90 = Hmisc::wtd.quantile(x = incwage, weights = asecwt, probs = 0.9
    ),
    .groups = "drop"
  ) |>
  pivot_longer(
    cols = c("p10","p50","p90"),
    names_to = "quantity",
    values_to = "income"
  ) |>
  # Join data for inflation adjustment
  left_join(
    read_csv("https://soc114.github.io/data/inflation.csv"),
    by = join_by(year)
  ) |>
  # Apply the inflation adjustment
  mutate(income = income * inflation_factor) |>
  # Produce a ggplot
  ggplot(aes(x = year, y = income, color = quantity)) +
  geom_line() +
  xlab("Year") +
  scale_y_continuous(name = "Annual Wage and Salary Income\n(2023 dollars)",
                     labels = scales::label_dollar()) +
  scale_color_discrete(name = "Percentile of\nDistribution",
                       labels = function(x) paste0(gsub("p","",x),"th")) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

Want to do more?

If you have finished and want to do more, you could

  • incorporate the educ variable in your plot. You might want to group by those who do and do not hold college degrees, perhaps using facet_grid()
  • try geom_histogram() for people’s incomes in a specific year
  • explore IPUMS-CPS for other variables and begin your own visualization
Back to top

Footnotes

  1. Thanks to past TA Abby Sachar for designing the base of this exercise.↩︎
